Antenna RF Diplexer, RF diplexer splitter/combiner
Table of Models
Diplexers
| wdt_ID | Model Number | Frequency Range (MHz) | Port | Insertion Loss (Max dB) | Rejection (Min dB) | Return Loss INPUT (Min dB) | Return Loss OUTPUT (Min dB) | ISOLATION (Min dB) | POWER PASS (mA) | IMPEDANCE (OHM) |
|---|---|---|---|---|---|---|---|---|---|---|

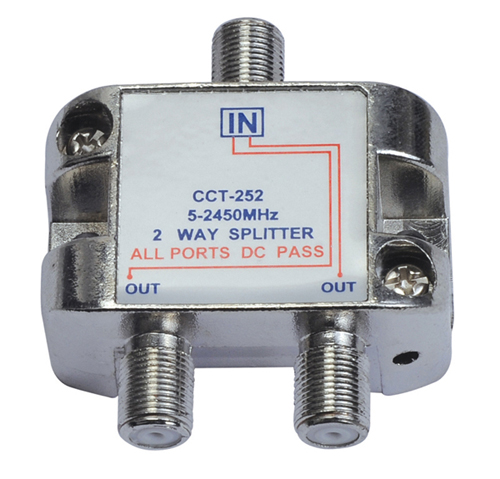

| 1 | CCT-252 | 5-2450 | 5.0-7.5 | 10 | 10 | 15-20 | 500 | 75 | ||

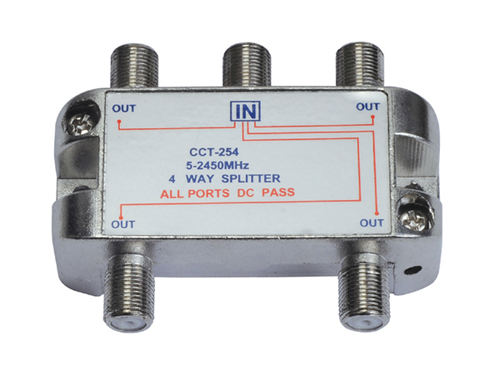

| 2 | CCT-254 | 5-2450 | 10.5-13 | 8-10 | 10 | 15-20 | 500 | 75 | ||
| 3 | CCT-6587 | 2-65MHz 87-1000MHz | Com〈-〉Data Com〈-〉TV | 0.8 0.8 | 60 60 | 20 | 60 60 | 75 | ||
| 4 | CCT-3247P | 1-32MHz 47-1000MHz | Com〈-〉Data Com〈-〉TV | 1.0 0.8 | 60 60 | 20 | 60 60 | 75 | ||
| 5 | CCT-8697 | 5-862MHz 975-1600MHz | Com〈-〉Data Com〈-〉TV | 1.5 1.5 | 60 60 | 16 | 60 60 | 75 |
