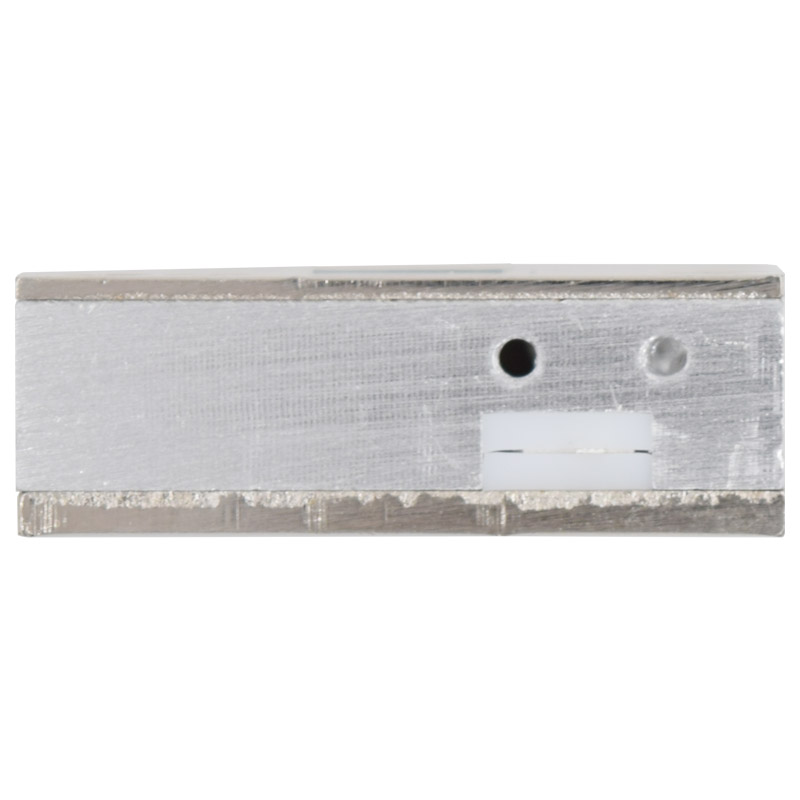

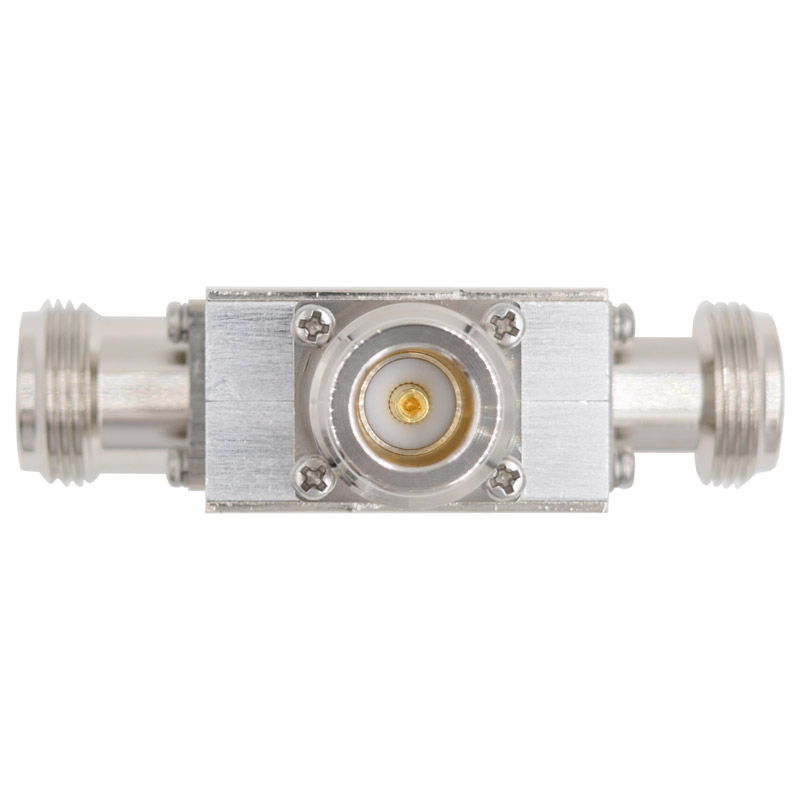

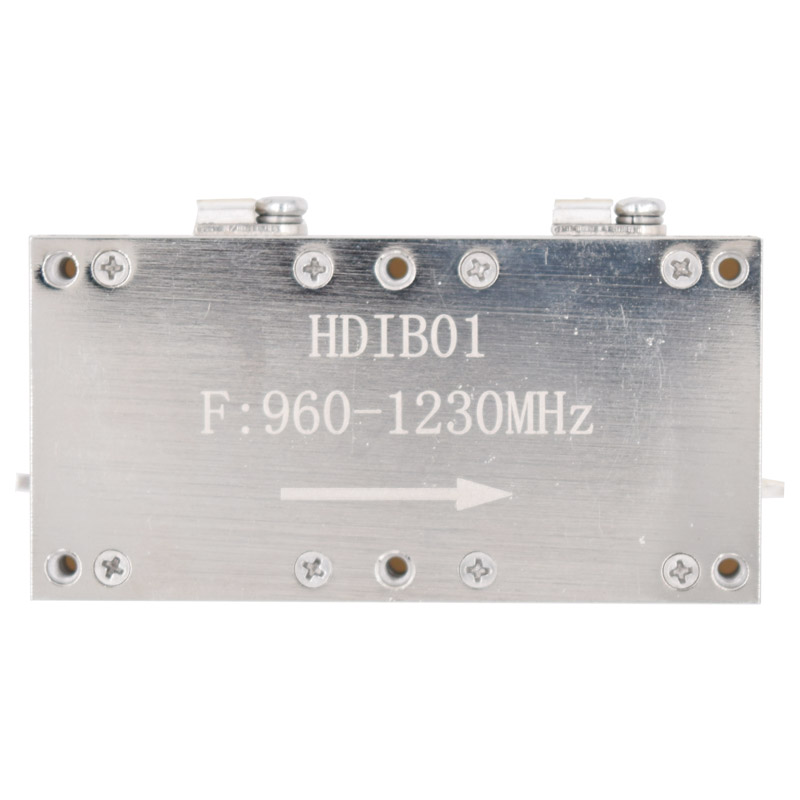

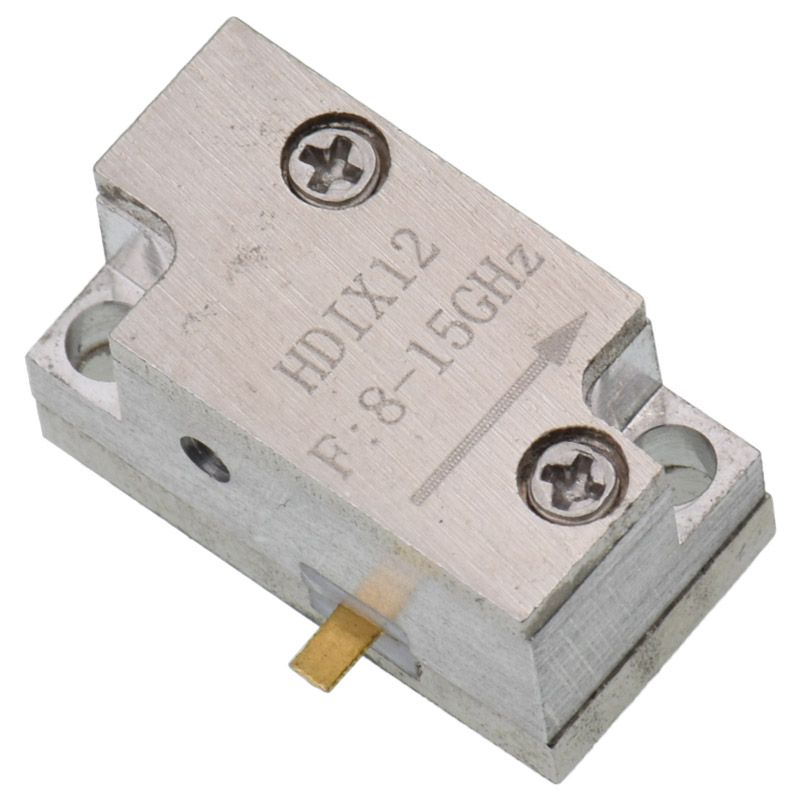

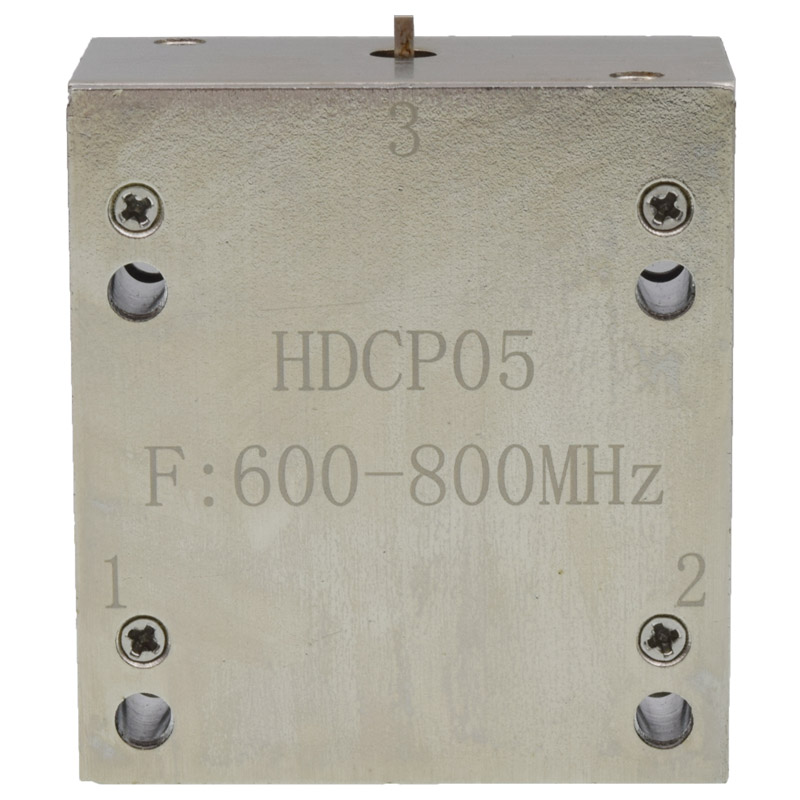

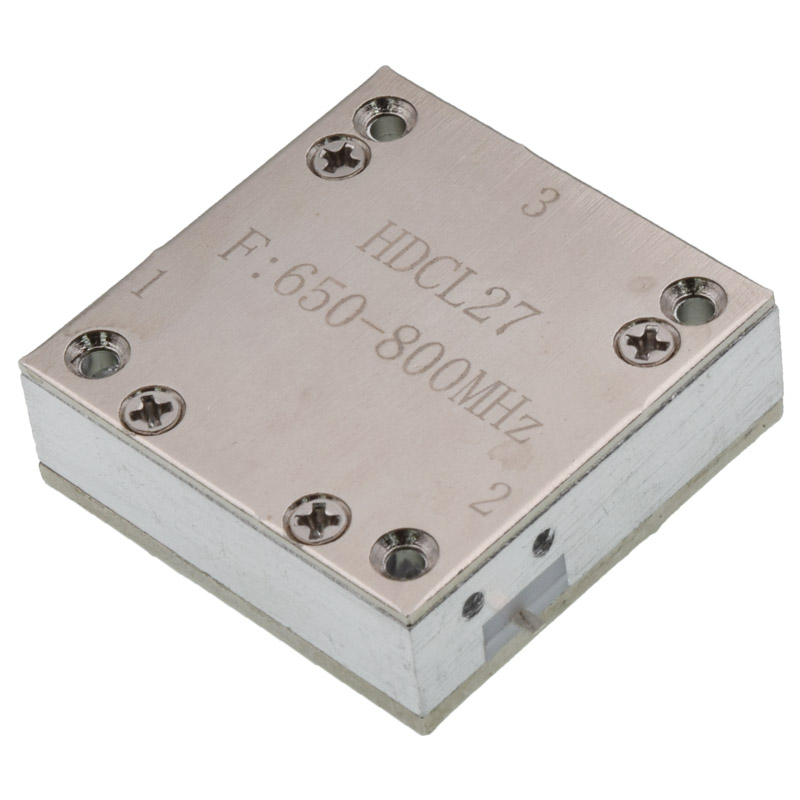

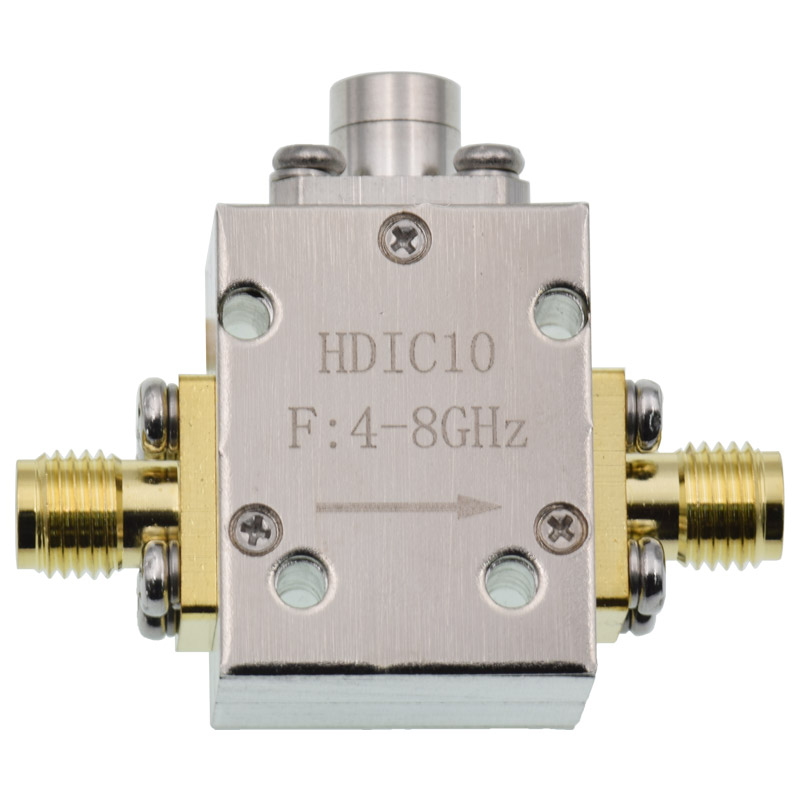

RF Isolator/Circulators, 48MHz to 365GHz, 1 Watt to 200 Watts pending on Model Number (contact us for more info)

  • Broad selection of frequency and Bandwidth
  • High Peak and CW Power Handling capability
  • Multiple type of connectors
  • Available in a number of configurations
  • OEM Service is provided

Filter

Table of Models

wdt_ID Model Number Frequency (MHz) Bandwidth(MHz) IL(db) VSWR (max) ISO(min) Forward Power(W) Reverse Power(W) Connector Type Temperature (℃)
3 SMIS2328-30W(50) 2300-2800 50 0.30 1.15 23 30 30 SMA -55~+85
4 SMIS2328-30W(100) 2300-2800 100 0.35 1.20 21 30 30 SMA -55~+85
5 SMIS2328-30W(200) 2300-2800 200 0.40 1.20 20 30 30 SMA -55~+85
6 SMIS1725D-50W(50) 1700-2500 50 0.30 1.15 23 50 50 Drop In -55~+85
7 SMIS1725D-50W(100) 1700-2500 100 0.35 1.20 21 50 50 Drop In -55~+85
8 SMIS1725D-50W(200) 1700-2500 200 0.40 1.25 21 50 50 Drop In -55~+85
9 SMIS1725D-100W(50) 1700-2500 50 0.30 1.15 23 100 50 Drop In -55~+85
10 SMIS1725D-100W(100) 1700-2500 100 0.35 1.20 21 100 50 Drop In -55~+85
11 SMIS1725D-100W(200) 1700-2500 200 0.40 1.25 21 100 50 Drop In -55~+85
12 SMIS1728-50W(50) 1700-2800 50 0.30 1.20 23 50 50 SMA -55~+85
Contact our sales for more info
