RF Power Dividers/Splitters, Combiners and Hybrids for 2-Way, 3-way, 4-way, 6-way and 8-way

  • 50 Ohm and 75 Ohm systems
  • DC to 40 GHz
  • DC passing and DC blocking
  • SMA, N-Type, F-Type and BNC connectors
  • OEM Service is provided

Filter

Table of Models

wdt_ID Model Number Frequency Range Insertion Loss Isolation VSWR Power Handling Operating Temperature Impedance Port Connectors Surface Color

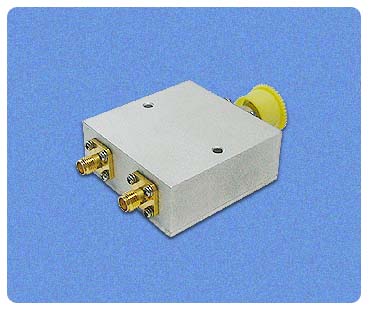

1 FLT-2-2500S 0.8～2.5GHz ≤0.5dB ≥20dB ≤ 1.30:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω SMA-Female Silvery white
2 FLT-2-2700S-H 0.7～2.7GHz ≤0.5dB ≥20dB ≤ 1.30:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω SMA-Female Silvery white
3 FLT-2-2700Q-H 0.7～2.7GHz ≤0.5dB ≥20dB ≤ 1.30:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω QMA-Female Silvery white

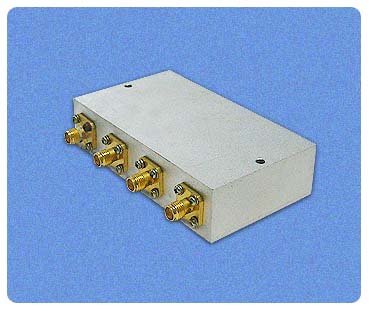

4 FLT-4-2500S 0.8～2.5GHz ≤0.7dB ≥18dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω SMA-Female Silvery white
5 FLT-4-2700S-H 0.7～2.7GHz ≤0.7dB ≥20dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω SMA-Female Silvery white
6 FLT-4-2700Q-H 0.7～2.7GHz ≤0.7dB ≥20dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω QMA-Female Silvery white
7 FLT-8-2700S 0.7～2.7GHz ≤1.0dB ≥18dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω SMA-Female Silvery white
8 FLT-8-2700Q 0.7～2.7GHz ≤1.0dB ≥18dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω QMA-Female Silvery white
9 FLT-8-2500S 0.8～2.5GHz ≤0.7dB ≥20dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω SMA-Female Silvery white
10 FLT-8-2500N 0.8～2.5GHz ≤0.7dB ≥20dB ≤ 1.35:1 Forward ≤20 Watts Reversed ≤1 Watt -20～+65℃ 50Ω N-Female Silvery white
Contact our sales for more info
