Low Pass Filter, High Pass Filter, Band Pass Filter, Narrow Bandpass Filter, Octave Bandwidth Band Pass Filt

  • DC to 40 GHz
  • As small as 0603
  • Available in a number of configurations
  • OEM Service is provided

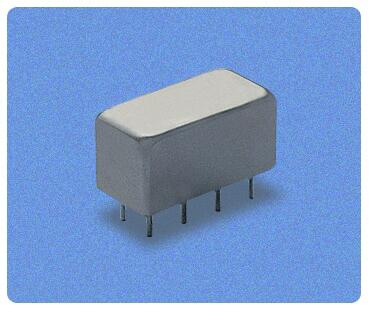

Filter

Table of Models

Low Pass Filter

wdt_ID Model Number Impedance Pass Band Pass Band Insertion Loss Return Loss Stop Band Rejection(1125-2000MHZ) Rejection(2001-3000MHZ) Dimensions Weight
1 SKY-LP-1200-75 75 ohm 5-1000MHZ 0.5dB(typ)/2.5dB(max) 14dB(typ)/12dB(min) 1125-3000MHZ 50dB(typ)/40dB(min) 60dB(typ)/50dB(min) 11.5(￠)X46(L)mm 23g

Band Pass Filter

wdt_ID Model Number Center Frequency(MHZ) Insertion Loss (dB) 3dB Bandwidth f1 f2 I.L＞40dB Rejection Frequency(Mhz) Center Frequency VSWR(typ) Case Style
1 SBP-10.7N 10.70 2.0 9.5 11.5 8 14 1.7:1 A1
2 SBP-21.4N 21.40 2.0 19.2 23.6 16.5 27 1.7:1 A1
3 SBP-30N 30.00 2.0 26 34 23 39 1.7:1 A1
4 SBP-40N 40.00 2.0 36 44 31 50 1.7:1 A1
5 SBP-60N 60.00 2.0 53 67 46 77 1.7:1 A1
6 SBP-70N 70.00 2.0 63 77 55 87 1.7:1 A1
7 SBP-100N 100.00 2.0 90 110 77 127 1.7:1 A1
8 SBP-400N 400.00 2.0 360 440 315 505 1.7:1 A1
9 SBP-600N 600.00 2.0 540 660 470/35dB 750/35dB 2.0:1 A1

High Pass Filter

wdt_ID Model Number Pass Band(Mhz) L≤1dB 3dB Cut-off Frequency(Mhz) Stop Band(Mhz) 20dB 40dB VSWR(Typ) Case Style
1 SHP-25 27.5-200 25 DC-13 13-19 1.8:1 A1
2 SHP-50 41.5-300 37 DC-20 20-26 1.5:1 A1
3 SHP-100 90-400 82 DC-40 40-55 1.5:1 A1
4 SHP-175 160-800 140 DC-70 70-105 1.5:1 A1
5 SHP-200 185-800 164 DC-90 90-116 1.6:1 A1
6 SHP-250 225-1200 205 DC-100 100-500 1.8:1 A1
7 SHP-300 290-1200 245 DC-145 145-170 1.7:1 A1
8 SHP-400 395-1600 360 DC-210 210-290 1.7:1 A1
9 SHP-500 500-1600 454 DC-280 280-365 1.8:1 A1
10 SHP-600 600-1800 545 DC-350 350-440 2.1:1 A1

Low Pass Filters

wdt_ID Model Number Pass Band(Mhz) Loss 1dB Stop Band(Mhz) 20dB 40dB VSWR(Typ) Case Style
1 SLP-5 DC-5 27.5 9.5 89.5-200 1.7:1 A1
2 SLP-10.7 DC-11 16.5 21 21-200 1.7:1 A1
3 SLP-21.4 DC-22 32 41 41-200 1.7:1 A1
4 SLP-30 DC-32 47 61 61-400 1.7:1 A1
5 SLP-50 DC-48 70 90 90-400 1.7:1 A1
6 SLP-70 DC-60 87 114 114-400 1.7:1 A1
7 SLP-90 DC-81 118 154 154-600 1.7:1 A1
8 SLP-100 DC-98 142 185 185-600 1.7:1 A1
9 SLP-150 DC-140 205 265 265-800 1.7:1 A1
10 SLP-200 DC-190 280 360 360-1000 1.7:1 A1

Narrow Bandpass Filter

wdt_ID Model Number Center Frequency (Mhz) Center Freq. Loss Max(dB) I.L＞35dB Rejection Frequency(Mhz) Case Style
1 SBP-10.7N 10.70 6.0 9.3 12.3 A1
2 SBP-30N 30.00 5.0 26 34.5 A1
3 SBP-70N 70.00 5.0 61 80.5 A1
4 SBP-100N 100.00 5.0 87 115 A1
5 SBP-160N 160.00 5.0 139 184 A1
6 SBP-200N 200.00 6.0 174 230 A1
7 SBP-400N 400.00 6.0 345 460 A1

Octave Bandwidth Band Pass Filt

wdt_ID Model Number Frequency Range(MHZ) Band Pass Loss Max (dB) I.L＞40dB Rejection Frequency(Mhz) VSWR(typ) Case Style
1 SBP-11W 6-11 2.0 4.5 14 1.70 A1
2 SBP-15W 7.5-15 2.0 6 19 1.70 A1
3 SBP-24W 12-24 1.8 9 30 1.60 A1
4 SBP-40W 20-40 1.8 15.5 50 1.60 A1
5 SBP-60W 30-60 1.8 24 75 1.60 A1
6 SBP-80W 40-80 1.8 32 100 1.60 A1
7 SBP-120W 60-120 1.8 47 150 1.60 A1
8 SBP-180W 90-180 2.0 72 220 1.70 A1
9 SBP-240W 120-240 2.0 95 290 1.70 A1
10 SBP-400W 200-400 2.0 160 500 2.00 A1
Contact our sales for more info
